User Manual for graphing

This is an online educational tools to make graph of mathematical implicit functions of 2D in this section. Type any mathematical expressions in the left input box, right input box and then press the drawing button. It takes sometimes to draw graph of this function and be patience to calculate huge points to draw the graph. For zoom this graph, you can change the x-scale and y-scale. It can draw any implicit function of two variables. You can see the user manual for properly use this online tools. Thank you for viewing this article.

1. The vedio Tutorial link: Youtube vedio tutorial for implicit functions

2. For implicit function, you will type inplicit functions of variables x and y in two input boxes and equal sign(=) is situated between two input boxes..

3. Drawing the implicit function graph, it will take some times. May be 2 sec to 1 min. Hence, be pateince.

4. For some approxiamation error, the sketch will be thick but the shape will remain unchanged. sorry for that.

5. If you need to write π, then you must write pi or PI or Pi

How to get update website

To get update website, you can clear your browser chache data (if you browse this website before many days) or browse this website with another website browser. Steps for clear chache: 1. on your computer, open browser. 2. At the top right, click More. 3. Click More tools. Clear browsing data. 4. choose a time range. 4. "Cached images and files," check the boxe. 5. Click Clear data. Different browser may have different ways.

Definition and graph of explicit function and implicit function

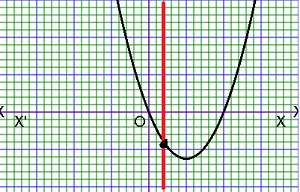

Explicit function is a function which is depend on independent variable. As for example, y = x² - 3x is a explicit function where x is independent variable and y is dependent variable. Any vertical line passing through the graph of explicit function only one point. For drawing explicit function, click the button Home & Simple function on the website www.graph2d.com and you can type x**-3*x in the input box and then the graph will drawn automatically. For learn about piecewie function of Mathematics and graphing, visit: Graphing piecewie function of Mathematics

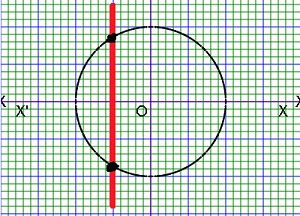

Implicit function is a relation between two or more dependent variable which are dependent on with each other. As for example, x²+y²=100 is an implicit function where x and y both are dependent variables with each other. Any vertical line passing through the graph of implicit function two or more points. For drawing implicit function, click the button Implicit function on the website www.graph2d.com and you can type x2+y2 in the left input box , type 100 in the left input box and then the graph will drawn automatically. For learn about complex analysis of Mathematics and graphing, visit: Graphing complex analysis of Mathematics

Plotting rectangle/square/Paralellogram/rhombus from Equations

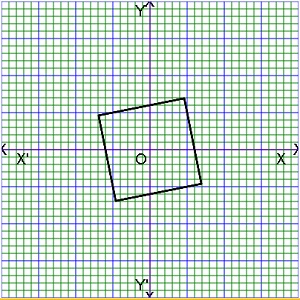

In Mathematics, The implicit equation of rectangle / square/ Parallelogram/ rhombus is |ax+by+c|+|dx+ey+f|=k------(1). If ax+by+c=0 and dx+ey+f=0 are perpendicular, then the equation (1) is an rectangle or square otherwise the equation (1) is paralillogram or rhombus. As for example, the graph of |2x+3y|+|3x-2y|=30 is a square which is drawing by www.graph2d.com . For drawing type abs(2x+3y)+abs(3x-2y) in the left input box,type 30 in the right input box and then the graph will drawn automatically. The graph of that implicit function is given belows.

For learn about linear programming or operation research of Mathematics and graphing, visit: Graphing linear programming or operation research of Mathematics

Plotting cardioid from implicit equation

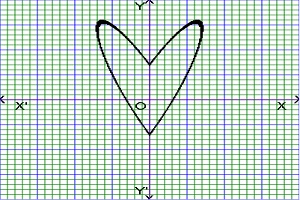

In Mathematics, An implicit equation of cardioid is x^2+(y-2|x|)^2=1.For drawing the graph of x^2+(y-2|x|)^2=1 by the free graph drawing website www.graph2d.com, type x^2+(y-2|x|)^2 in the left input box,type 1 in the right input box and then the graph will drawn automatically. You can change x-scale and y-scale. The graph of that cardioid is given belows.

For learn about polar function of Mathematics and graphing, visit: Graphing polar function of Mathematics

About Pi Π

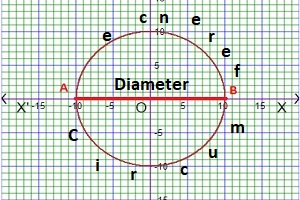

Pi (Π) is an irrational number which is the ratio of the circumference of a circle and its diameter.it's value is approximately equal to 3.14159 or 22/7.if you divide the circumference or the total distance around the circle by it's diameter, you will get value of pi (Π). Whether the circle is big or small, the value of pi (Π) remains unchance or the same value. The symble of pi is denoted by the greek letter Π and it is used to represent a mathematical constant. So Π= circumference/diameter.

Some uses of daily life of Π are 1. Electrical engineers used pi to solve problems for electrical applications 2.Statisticians use pi to track population dynamics 3. Biochemists see pi when trying to understand the Pistructure/function of DNA 4. Physicists looking into the behavior of fluid ripples see pi and use it in their calculations 5. Medicine benefits from pi when studying the structure of the eye 6. Aircraft designers use it to calculate areas of the skin of the aircraft 7.Navigation, such as global positioning (GPS) 8. Clock designers use pi when designing pendulums for clocks 9.Signal processing and spectrum analysis (finding out what frequencies are in the wave you are using) uses pi since the fundamental period of a sine wave is 2*pi. 10.Solving Mathematics problems in Geometry like finding the area of circle etc. 11. Calculating the number of death in a population etc.

How to convert implicit function to parametric function

let us consider an equation of circle x²+y²=1 which is an implicit function. since sin²t+cos²t=1,so the parametric equation of this circle is x(t)=cost and y(t)=sint.
Again consider an equation of ellipse x²/a²+y²/b²=1 which is an implicit function. Since x(t)=acost and y(t)=bsint is satisfy the equation of this ellepse, so the parametric equation of ellipse is x(t)=acost and y(t)=bsint.

Asymptote of implicit function

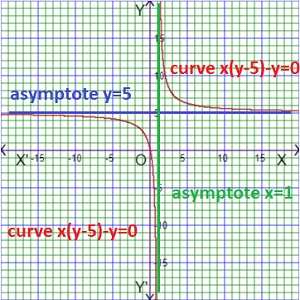

An implicit function f(x,y)=0 has an asymptote, if the distance between a straight line and the curve of this function tends to zero, when the points on the curve approach to infinity. As for example the implicit function x(y-5)-y=0 ⇒ x(y-5)=y ⇒ x=y/(y-5) which is undefined at y=5, Hence it has an horizontal asymptote y=5 because the distance between the asymptote y=5 and the curve tends to zero when the points on the curve approach to infinity. again the implicit function x(y-5)-y=0 ⇒ xy-5x-y=0 ⇒ y(x-1)=5x ⇒ y=5x/(x-1) which is undefined at x=1, Hence it has a vertical asymptote x=1 because the distance between the asymptote x=1 and the curve tends to zero when the points on the curve approach to infinity.
